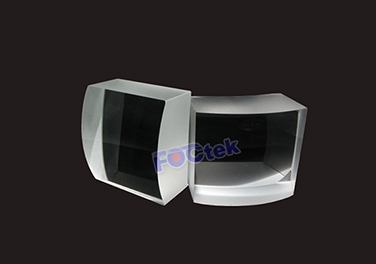

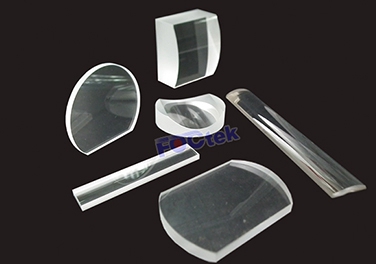

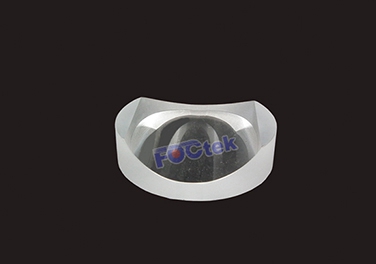

柱面透鏡
| 屬性 | 規范參數 |
| 標準材質 | 應要求，例如 BK7, K9, 熔融石英, SF10等 |
| 直徑公差 | ±0.2 (General), ±0.05 (High Precision) |
| 焦距公差 | ±2% |
| 光軸性 | <3 arc min |
| Surface Figure X (per [email protected]) | λ/2 (General), λ/4 (High Precision) |
| Surface Figure X (per [email protected]) | 2λ (General), λ (High Precision) |
| 表面質量 | 60/40 (General), 10/5 (High Precision) |
| 倒角 (face width x 450) | <0.2-0.5mm (General), 0.05-0.2 (High Precision) |
| 鍍膜 | unpon request |
